Q5

Product Introduction

The Q5 is paired with Qualcomm neodymium magnetic drive HF: 1 x2.5 "MF: 4x 5.25", breaking through the shortcomings of traditional bulky arrays. It is more convenient to install and stack, and has a small, light, and thin design. Although the speaker is small, it also has loud grading and high definition. The bottom of the box is equipped with metal bracket holes, which facilitate the use of multiple stacked flow performances. To meet a wider sound field effect, the Q5 is equipped with a Q215 (LF: 2x 15 ") ultra-low frequency audio system. It can be used for fixed installation and mobile performance in large environments.


Product Parameters

System Type

Binary frequency 5.25“ × 4-inch

linear speaker

Frequency

100Hz - 18 kHz(±3dB)
Soeaker Unit

MF 5.25"×4+HF 2.5"×1

Power

400W(Aes),1200W(Peak)

Sensitivity110dB
Max SPL140dB(Peak)
Impedamce
Dispersion90°×7° (H×V)
Dimension(W×H×D)545×355×253mm
Weight

17.9kg

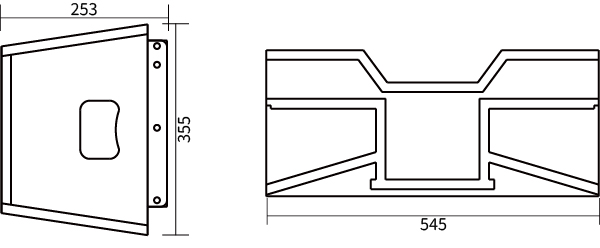

Dimension
