PS12-R2

Main Features

● High power system (134dB peak sound pressure @ 1m). Use new 12 inch (low frequency) and 1.75 inch (high frequency) push units.
● The rotatable, asymmetric horn and unique box structure are suitable for diversified purposes, and can be used for main sound reinforcement or anti echo monitoring.
● Advanced electronic processing ensures the linearity and reliability of system operation, with various installation and hanging accessories.


Application

● Near Field Use of Mobile Performance
● Fixed installation projects such as sound systems for clubs, audiovisual, theaters, broadcasting, etc
● High quality monitoring system for clubhouse audio, theater, broadcasting, etc
● Suitable for various entertainment venues


Product Parameters

System Type

Two-way 12-inch low-frequency direct-firing
speaker

Frequency

60 Hz - 20 kHz(±3dB)
Soeaker Unit LF 12"×1+HF 1.75"×1
Power 400W(Aes),1600W(Peak)
Sensitivity101dB
Max SPL134dB(Peak)
Impedamce
Dispersion50/100°×55°(H×V)
Connector2×Neutrik NI4
Wiring Mode+1/-1
Dimension(W×H×D)364×580×310mm
Weight

19.5kg

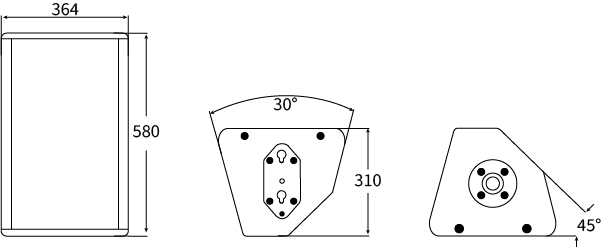

Dimension
