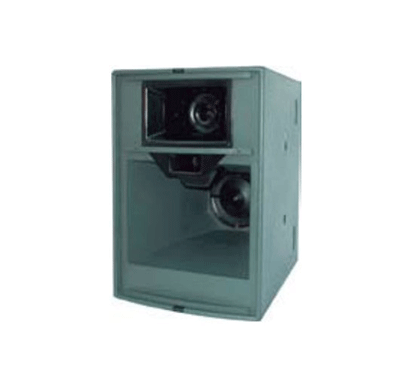

● W8C is a 12" three-way full-range speaker with built-in computer-detected passive crossover
● Using the Italian CLIO computer test equipment for detailed sound quality measurement
● The treble adopts 1.75" B diluted diaphragm, 55OH/30OV horn, the middle sound adopts 6" mica diaphragm, 55OH/30OV phase correction horn, makes the high intermediate frequency more transparent, bright and more penetrating, with optimized performance bass. Unit with remote projection strength and flexibility
● Special trapezoidal box design, sturdy box structure, easy to install and array, the box is sprayed with gray polyester waterproof paint, easy to protect, not only waterproof, moisture-proof, light-resistant, and easy to protect daily
● In addition to the standard hanging device, the mounting method also has a metal bracket hole at the bottom of the box to meet the installation requirements of different places.
● This speaker is suitable for sports venues, theaters, DISCO, nightclubs and other entertainment venues.
● When a wider sound field effect is required, it can be combined with W8CS, WSX, S218+ and other ultra-low frequency boxes for better sound field effect.
caveat● +1/-1 is the low frequency input terminal, +2/-2 is the intermediate frequency input terminal, +3/-3 is the high frequency input terminal, and can be used in parallel with other speakers through the output socket, but it should be noted that this time Matching of all speaker impedances and amplifiers ● Please do not overload the machine for a long time to avoid damage to the speaker, especially the unit. ● To avoid equipment damage, please pay attention to the matching and normal use of the amplifier and equipment | noteUse the processor or data used to provide reference for the best performance to ensure the stability of the unit |
Power Rated Power Aes 510W
Peak power Peak Power 2040W
Impedance Nominal Impedance 8Ω
Frequency Response Frequency Response (+/-3db) 120HZ—18KHZ
Sensitivity Sensitivity (2.83V/1m) 106db
Maximum control sound pressure Maximum Spl Continuous 129db
Peak Sound Pressure Maximum Spl Peak 135db
Coverage angle Dispersion -6db
Horizontal Horizontal 55
Vertical Vertical 30
Drive Specification
Bass Lf Drive 1×12" (300mm) low-mid horn
Alto Mf Drive 1×6.5"(165mm) high-mid horn
Treble Hf Drive 1"exit Compression Driver 1.75" voice Coil
Connector Connectors 4× Neutrik Nl8
Wiring method Paralleled Neutnik Speakon +1/-1, +2/-2, +3/-3
Enclosure Material Plywood
Cabinet Finish Textured Black Polyester Paint
Hanging device Hoisting Set 4×MAN Flying Points
Box size Dimensions (w×h×d) 556×799×780
Weight Weight (Kg) 71Kg
