Product Introduction The KARA line sound source array speaker adopts a built-in dual frequency design, equipped with two 8-inch bass units and a 3-inch diaphragm high-frequency compression driver unit. It adopts the leading technology of linear speaker products, and two 8-inch high-power bass units are assembled in the box. The 3-inch diaphragm high-frequency compression driver is loaded on the V-shaped waveguide to provide a constant horizontal coverage angle of 110 ° and a vertical coupling angle of 10 °, Has extremely uniform frequency response across the entire frequency band. |
Product Parameters | |
| System Type | Two frequency dual 8-inch linear speaker |
Frequency | 55 Hz - 20 kHz(±3dB) |
| Soeaker Unit | LF 8"×2+HF 3"×1 |
| Power | 500W(Aes),2000W(Peak) |
| Sensitivity | 97dB |
| Max SPL | 144dB |
| Impedamce | 8Ω |
| Dispersion | 70/90/110°×10°(H×V) |
| Wiring Mode | +1/-1 |
| Dimension(W×H×D) | 730×250/164×482mm |
| Weight | 26kg |

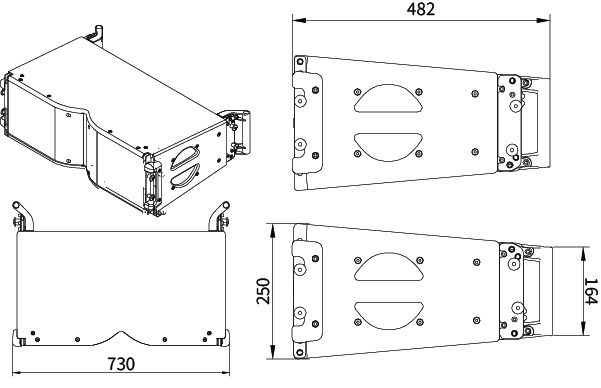

Dimension
